Resolute Medical CardioPak ECG/Defibrillator
Resolute Medical CardioPak ECG/Defibrillator
The CardioPAK™ COMPACT from Resolute Medical is the ideal solution for rapid field diagnosis of the condition of the heart with the added capability of defribrillating with a professional-grade AED. The MedicECG® 12-lead ECG is the first device of its kind designed for the field with ruggedization and portability in mind. It is extremely easy to operate and delivers fast results. The device’s accuracy and quality exceeds industry standards, and industry-leading algorithms allow for automated interpretation of the results. Device comes with Sure-Lock® Electrode Clips compatible with both snap and tab electrodes. The CardioPAK™ COMPACT comes with a Panasonic Toughpad® FZ-M1 7 in. Rugged Handheld Computer designed for critical mobile field applications. Also included is a Philips HeartStart FR3 AED, which is the smallest, lightest, and most rugged professional-grade AED in the USA.
- Lightest and smallest ECG available
- Designed for use in the field - ruggedized, portable, and easy to use
- Automated interpretation of ECG rhythms to alert the user of patient risks
- Results can be transferred through field communication channels
- Includes rugged, 7 in. tablet for viewing, interpreting, or sending data
- Includes small, rugged, lightweight AED with 300 shock capacity
Specifications:
- Lightest and smallest ECG available
- Designed for use in the field - ruggedized, portable, and easy to use
- Automated interpretation of ECG rhythms to alert the user of patient risks
- Results can be transferred through field communication channels
- Includes Panasonic Toughpad® FZ-M1 7 in. tablet for viewing, interpreting, or sending data
- Includes Philips HeartStart FR3 AED with 300 shock capacity and Bluetooth compatibility
- Useful for early diagnosis of abnormal heart conditions before sending personnel to the field
- Versatile, inexpensive, and highly portable solution for base hospital ECG testing
- Exceeds industry standards for ECG accuracy and quality
- Supplied in muted mil spec colors with crushproof, waterproof, and dustproof case for easy and reliable storage
MedicECG® Data acquisition unit specs:
- Leads: 12
- Electrode Compatibility: Standard
- Electrode Interface: Snap and Tab
- Computer Interface: Wired
- Frequency Range: 0.05 Hz - 150 Hz
- Sampling Rate: 8000 Hz [125 µs]
- Analysis Window: 16 seconds
- Report Generation: <3 seconds post analysis

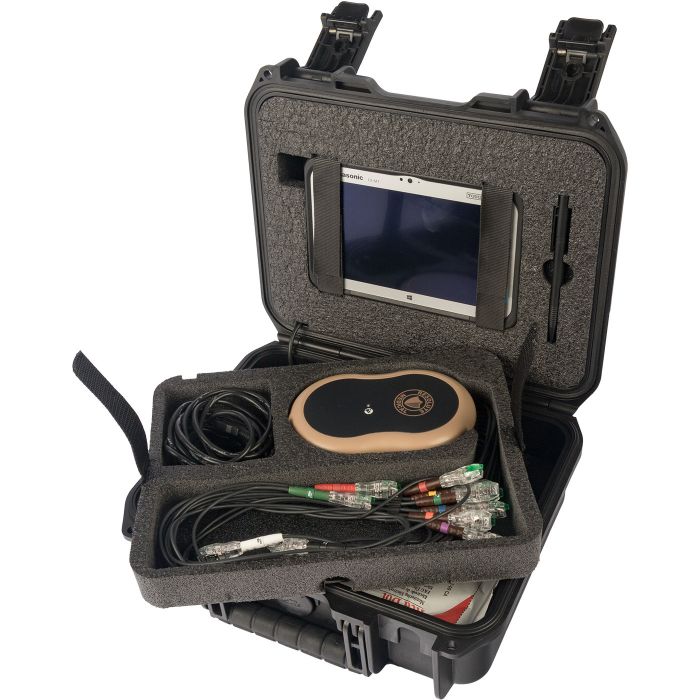

CardioPAK™ COMPACT Kit Contents:
- 1 x Resolute Medical MedicECG® 12-lead ECG data acquisition unit
- 1 x Panasonic Toughpad® FZ-M1 Rugged Handheld Computer
- 1 x Philips HeartStart FR3 AED with pads
- 12 x Electrode Leads
- 1 x Charger
- 1 x USB Cable
- 12 x Electrode Clips compatible with both snap and tab electrodes
- 12 x Electrodes
- 1 x Nylon Bag
- 1 x crushproof, waterproof carrying case
Dimensions:
   MedicECG® Unit
- Dimensions: W 4.06 in. x H 6.26 in. x D 0.64 in.
- Weight: 1 lb
   Panasonic Toughpad® FZ-M1
- Dimensions: W 7.9 in. x H 5.2 in. x D 0.7 in.
- Weight: 1.2 lb
   Philips HeartStart FR3 AED
- Dimensions: W 5.3 in. x H 8.7 in. x D 2.7 in.
- Weight: 3.5 lb
   CardioPAK™ COMPACT Kit
- Packaged with hardcase: W 13.5 in. x H 11.25 in. x D 8.2 in.
- Weight with hardcase: 12.7 lb
- Weight in Rucksack Transport: 6 lb
Original: $15,749.99
-70%$15,749.99
$4,725.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Resolute Medical CardioPak ECG/Defibrillator
The CardioPAK™ COMPACT from Resolute Medical is the ideal solution for rapid field diagnosis of the condition of the heart with the added capability of defribrillating with a professional-grade AED. The MedicECG® 12-lead ECG is the first device of its kind designed for the field with ruggedization and portability in mind. It is extremely easy to operate and delivers fast results. The device’s accuracy and quality exceeds industry standards, and industry-leading algorithms allow for automated interpretation of the results. Device comes with Sure-Lock® Electrode Clips compatible with both snap and tab electrodes. The CardioPAK™ COMPACT comes with a Panasonic Toughpad® FZ-M1 7 in. Rugged Handheld Computer designed for critical mobile field applications. Also included is a Philips HeartStart FR3 AED, which is the smallest, lightest, and most rugged professional-grade AED in the USA.
- Lightest and smallest ECG available
- Designed for use in the field - ruggedized, portable, and easy to use
- Automated interpretation of ECG rhythms to alert the user of patient risks
- Results can be transferred through field communication channels
- Includes rugged, 7 in. tablet for viewing, interpreting, or sending data
- Includes small, rugged, lightweight AED with 300 shock capacity
Specifications:
- Lightest and smallest ECG available
- Designed for use in the field - ruggedized, portable, and easy to use
- Automated interpretation of ECG rhythms to alert the user of patient risks
- Results can be transferred through field communication channels
- Includes Panasonic Toughpad® FZ-M1 7 in. tablet for viewing, interpreting, or sending data
- Includes Philips HeartStart FR3 AED with 300 shock capacity and Bluetooth compatibility
- Useful for early diagnosis of abnormal heart conditions before sending personnel to the field
- Versatile, inexpensive, and highly portable solution for base hospital ECG testing
- Exceeds industry standards for ECG accuracy and quality
- Supplied in muted mil spec colors with crushproof, waterproof, and dustproof case for easy and reliable storage
MedicECG® Data acquisition unit specs:
- Leads: 12
- Electrode Compatibility: Standard
- Electrode Interface: Snap and Tab
- Computer Interface: Wired
- Frequency Range: 0.05 Hz - 150 Hz
- Sampling Rate: 8000 Hz [125 µs]
- Analysis Window: 16 seconds
- Report Generation: <3 seconds post analysis
CardioPAK™ COMPACT Kit Contents:
- 1 x Resolute Medical MedicECG® 12-lead ECG data acquisition unit
- 1 x Panasonic Toughpad® FZ-M1 Rugged Handheld Computer
- 1 x Philips HeartStart FR3 AED with pads
- 12 x Electrode Leads
- 1 x Charger
- 1 x USB Cable
- 12 x Electrode Clips compatible with both snap and tab electrodes
- 12 x Electrodes
- 1 x Nylon Bag
- 1 x crushproof, waterproof carrying case
Dimensions:
   MedicECG® Unit
- Dimensions: W 4.06 in. x H 6.26 in. x D 0.64 in.
- Weight: 1 lb
   Panasonic Toughpad® FZ-M1
- Dimensions: W 7.9 in. x H 5.2 in. x D 0.7 in.
- Weight: 1.2 lb
   Philips HeartStart FR3 AED
- Dimensions: W 5.3 in. x H 8.7 in. x D 2.7 in.
- Weight: 3.5 lb
   CardioPAK™ COMPACT Kit
- Packaged with hardcase: W 13.5 in. x H 11.25 in. x D 8.2 in.
- Weight with hardcase: 12.7 lb
- Weight in Rucksack Transport: 6 lb
